The Industrial Guide to Glass Bottle Closures: Matrix, Tolerances & Leak Prevention

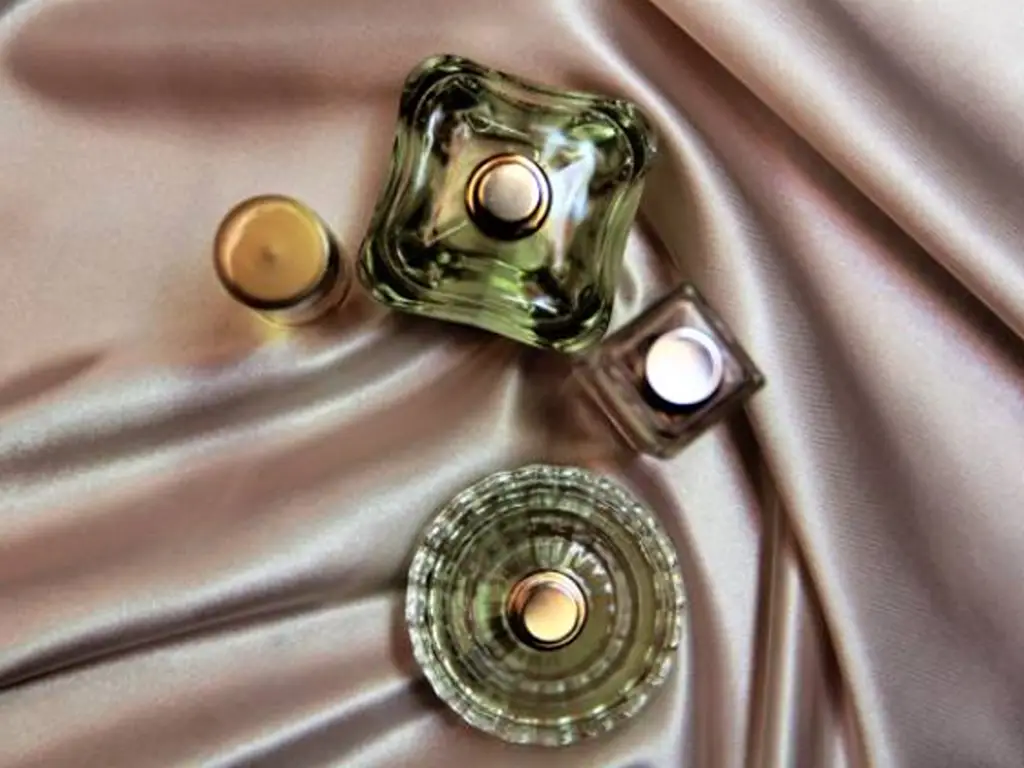

Mechanical Classification: Threaded, Press-Fit & Dispensing Systems

To architect a fail-proof packaging line, engineers must abandon the amateur approach of categorizing closures by basic materials. Instead, closures must be classified by their underlying physical sealing mechanics and terminal functionality. This dictates how force is applied on the production line and how the seal is maintained during transit.

I. Threaded Dynamics (Rotational Torque)

Threaded closures rely on rotational torque, but the mechanical pathways differ significantly:

• Continuous Thread (CT) Caps: Applied using Spindle or Chuck cappers. Matches standard GPI continuous threads. Ideal for general cosmetics and non-pressurized beverages.
• ROPP (Roll-On Pilfer-Proof): Supplied as unthreaded aluminum shells. Machinery physically deforms the metal over the glass threads on the fly, creating a bespoke, tamper-evident fit. Crucial for high-proof spirits and cold-fill oils.
• Lug Caps (Twist-Off): They do not feature a continuous thread; they rely on partial metal lugs interlocking with a twist-off glass finish, requiring steam injection to create an internal vacuum for food preservation.

II. Friction & Press-Fit (Vertical Top-Load)

Friction systems bypass rotation entirely, relying on massive vertical pressure to force an interference fit, ensuring aesthetic luxury or sterile hermetic integrity:

• Synthetic Stoppers: Utilizes vertical friction press equipment for luxury spirits/wines requiring TCA-free aging.
• Rubber Bungs & Crimp: Demands aseptic crimping stations. Engineered for Pharma/biotech where zero particulate fragmentation is required.
• Glass Stoppers (Vinolok): Requires a gentle vertical press and extremely tight bore tolerances for ultra-premium aesthetic appeal.

III. Flow-Control & Dispensing

When closures act as mechanisms to control output volume and safety:

• Dropper Assemblies: Essential oils requiring Child-Resistant (CR) and Tamper-Evident (TE) compliance.
• Non-Refillable Fitments: Anti-counterfeit systems for high-value spirits utilizing internal one-way valves.

The Industrial Selection Matrix

Having understood the physical mechanics, procurement teams can use the matrix below to cross-reference their specific application with the required closure type, machinery prerequisites, and capital expenditure implications.

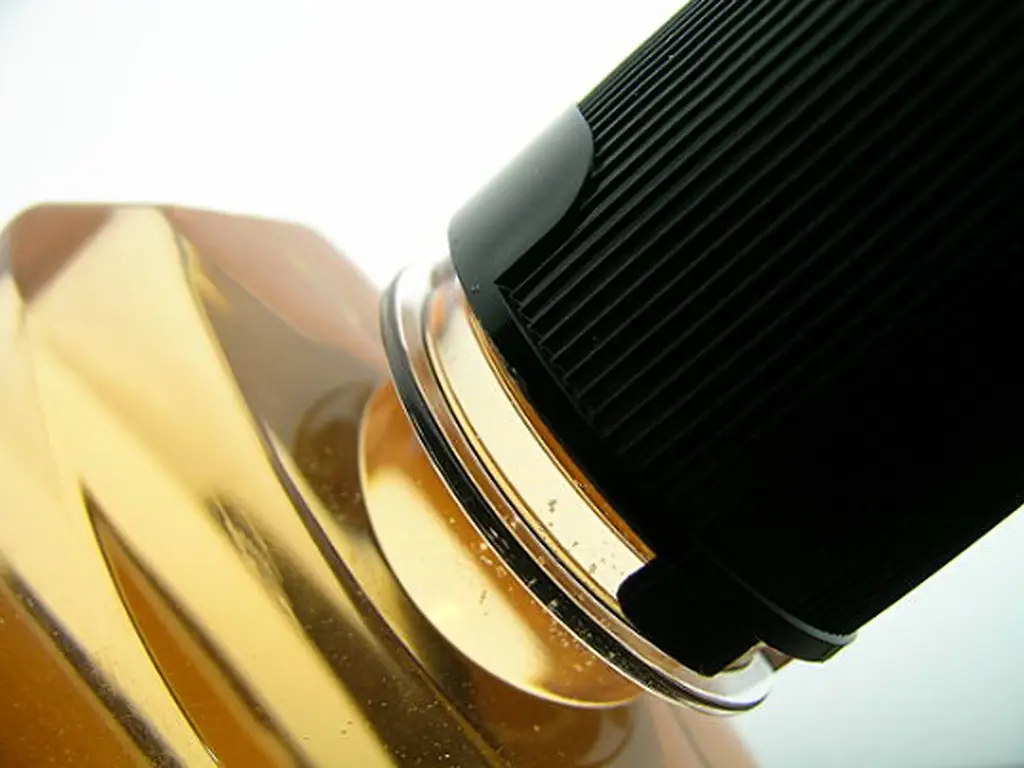

Micro-Sealing Mechanics & Prescribed Liquid Compatibility

A dangerous misconception in B2B packaging is that the outer cap prevents leaks. In reality, the rigid cap merely acts as the vehicle to deliver mechanical force. It is the highly engineered, compressible liner (wadding) that navigates the microscopic imperfections of the glass surface to create the true barrier.

Liner Technologies: Chemistry Over Aesthetics

Choosing the correct liner dictates shelf life. The spectrum is vast, designed for specific permeation rates:

• Plastisol: A flowed-in PVC-based compound used primarily in metal lug closures. It cures during the heat of application, forming a customized gasket perfect for hot-fill vacuum sealing.
• FPE/EPE (Foamed Polyethylene): A general-purpose, highly compressible multi-layer liner offering good chemical resistance and a high recovery rate for non-aggressive liquids.
• Saranex (PVDC-coated): An advanced barrier material offering exceptional resistance to oxygen and moisture transmission, critical for preventing oxidation.
• PTFE (Teflon) / Tin-Foil: The ultimate defense against highly aggressive solvents. Non-reactive, preventing chemical migration—essential for high-proof spirits.

Managing Extreme Industrial States

Industrial liquids subject packaging to extreme stress. Selection must follow a prescribed loop:

• High-Proof Alcohol: Aggressive solvents dissolve standard plasticizers. Solution: Mandatory Saranex or PTFE-faced liners.
• Hot-Fill Vacuum: Maintaining negative pressure after cooling. Solution: Plastisol-lined Lug Caps that cure into a permanent gasket.
• High-Pressure Carbonation: Internal PSI spikes causing blow-offs. Solution: Caps with deep venting slots to bleed gas safely before thread disengagement, paired with pressure-rated EPE.

Production Line Reality: Tolerances, Torque, and TCO

Even if an engineer specifies the perfect closure, the architecture collapses if the physical realities of glass manufacturing are ignored. The intersection of static glass dimensions and dynamic capping machinery is where profitability is decided.

The Static Trap: Dimensional Variances

Understanding GPI (Glass Packaging Institute) standards is only the first step. The critical parameters are the “T dimension” (outside diameter of the thread) and the “E dimension” (minor diameter). Unlike plastic, glass is shaped in steel molds. As molds wear, variances occur (typically ±0.38mm to ±0.50mm). If the glass shifts to the upper limit, threads become microscopically “fatter,” laying the groundwork for automated line failure.

The Dynamic Trap: Capping Machinery and “False Torque”

When oversized glass bottles enter high-speed cappers, a devastating mechanical failure known as “False Torque” occurs. The tight clearance generates immense abnormal friction. The machine’s clutch senses this resistance, assumes the target torque is reached, and stops. The QA sensors read “green,” but the cap stalled mid-way; the liner is uncompressed. The bottle is unsealed.

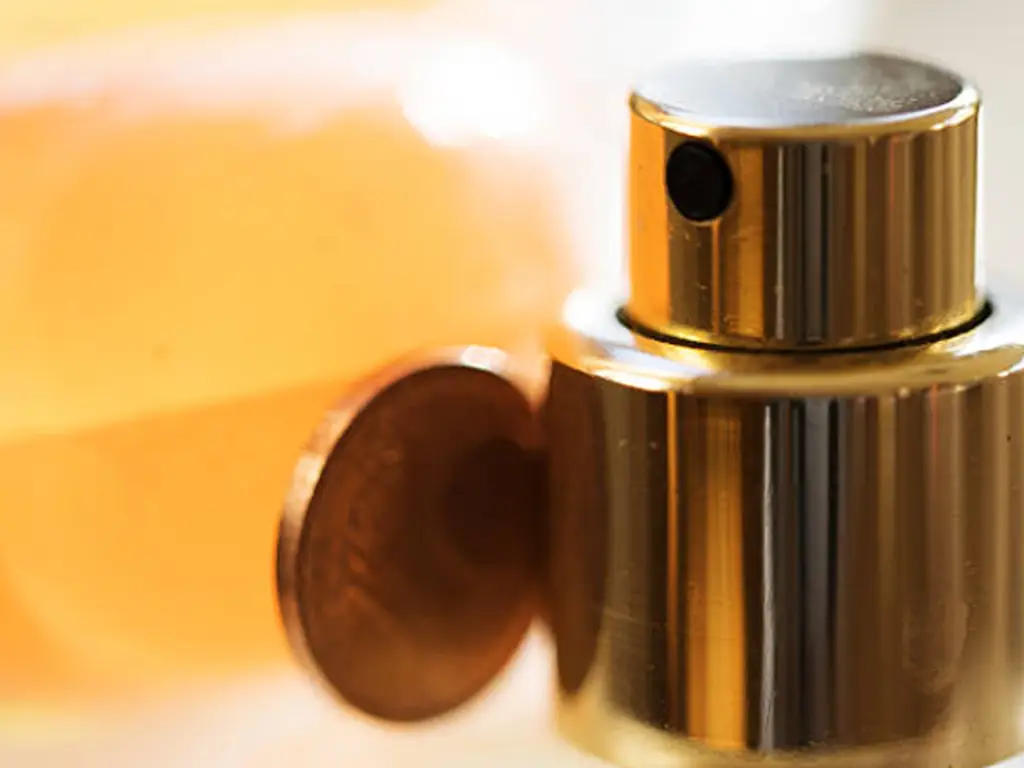

Supply Chain Navigation: The Sourcing Protocol

Strategic sourcing requires understanding hidden costs, particularly Minimum Order Quantities (MOQs) and tooling investments. While stock CT caps are accessible in low volumes, custom lithographic printing on metal crowns demands MOQs exceeding 50,000 units due to printing plate setups.

The Mandatory Prototyping Timeline

Conclusion: Securing Your Production Continuity

A glass bottle closure is the final gatekeeper of your product’s integrity. By respecting the strict boundaries of physical sealing mechanics, matching advanced liner technology to your liquid’s chemical profile, and rigorously defending against the dynamic traps of machinery torque and dimensional tolerances, you transform the sealing process from an operational liability into a predictable, highly optimized asset.
