Wine Bottle Design: Custom vs. Standard Shapes & Hidden Factory Costs

Wine Bottle Design Trends: From Geometry to Visual Psychology

In the brutally competitive arena of modern retail and high-end hospitality, a wine bottle must subconsciously communicate its precise price tier, regional origin, and flavor profile within a microscopic two-second window. We must completely abandon the amateur notion that packaging design is subjective art; rather, it is the strategic, calculated deployment of physical geometry, weight, and color to execute an immediate psychological anchor. The shape of the vessel sets the consumer’s expectation before the cork is ever pulled, meaning structural design is the most critical unspoken dialogue you will ever have with your buyer.

The Comprehensive Anatomy of Wine Bottle Shapes

The physical silhouette of your container is the silent ambassador of your terroir and your brand’s heritage. Choosing a shape that visually contradicts the liquid inside creates a fatal cognitive dissonance for both the sommelier recommending it and the consumer purchasing it. If the structural cues do not align with the sensory experience, trust is instantly broken. Below is the definitive architectural breakdown of classic and custom geometries, and the deep-seated psychological triggers they activate:

• The Bordeaux Silhouette (High-Shoulder): The undisputed titan of structural packaging. Characterized by straight, parallel walls and sharp, distinctly high shoulders, this bottle was historically engineered with a very specific physical purpose: to catch the heavy sediment produced by aging Cabernet Sauvignon, Merlot, and Malbec during the pouring process, preventing the bitter particulates from reaching the glass. Psychologically, the Bordeaux shape projects unwavering authority, classic luxury, and tannic structure. Consumers implicitly expect a wine housed in this geometry to be bold, structured, and capable of long-term cellaring. The sharp angles demand respect and denote a serious, formal winemaking approach.
• The Burgundy Silhouette (Sloping-Shoulder): Elegant, gracefully sloped, and distinctly bottom-weighted. Originally designed centuries ago for the delicate profiles of Pinot Noir and Chardonnay, the gentle, sweeping slopes lack the sediment traps of the Bordeaux bottle, perfectly reflecting the cleaner, less particulate-heavy nature of these varietals. In the minds of high-net-worth consumers, this shape signals “Old Money,” terroir-driven winemaking, and artisanal craft. The softer lines communicate elegance over power. Notably, placing a high-volume, inexpensive red blend into a massive, heavy-glass Burgundy bottle is a common, yet highly effective, psychological tactic used by modern brands to artificially inflate perceived value and shelf presence.
• The Champagne & Sparkling Vessel: This is an absolute masterpiece of pressure engineering rather than mere aesthetics. Built with extreme glass wall thickness and a deeply pronounced punt (the severe indentation at the base), it is designed specifically to distribute and withstand immense internal carbonation pressures that frequently exceed 90 psi (pounds per square inch)—roughly three times the pressure found in a standard automobile tire. The thick, sloping neck allows for the classic mushroom cork and structural wire muselet. Psychologically, the sheer physical weight and distinct curvature of this bottle promise celebration, effervescence, and exclusivity. The deeper the punt, the higher the perceived value of the cuvée.
• The Alsace / Flute Geometry: A slender, towering, and incredibly delicate profile. Completely devoid of shoulders, this soaring bottle is the global hallmark of aromatic, high-acid white wines such as Riesling, Gewürztraminer, and Pinot Gris. Its streamlined, vertical shape visually suggests crispness, purity, and floral elegance. Because these wines historically did not require heavy aging that produced sediment, the bottle could be elongated for maximum visual elegance. On a retail shelf, its height acts as a natural disruptor, physically towering over standard Burgundy and Bordeaux shapes to command immediate consumer attention.
• The Port / Fortified Configuration: Stout, thick-necked, and remarkably robust. The neck often features a pronounced bulbous section designed specifically to trap the heavy, crusted sediment that is common in vintage Ports and Madeiras during a long, slow decant. It speaks profoundly to longevity, warmth, and post-dinner indulgence. The glass is typically forged in the darkest possible shades to protect the fortified liquid over decades of slow oxidation.
• The Ice Wine / Dessert Slender: Exceedingly tall, extremely narrow, and typically holding only a fraction of a standard bottle (often 375ml or 500ml). This deliberate design exaggerates the visual height to mathematically compensate for the smaller volume, constantly reminding the consumer that the highly concentrated, incredibly sweet nectar inside is a rare, labor-intensive, and precious commodity that should be savored drop by drop.

Beyond selecting the perfect geometric silhouette, mastering the specific physical dimensions and capacity formats is equally critical for premium market positioning. To explore how different volume formats impact cellar aging and perceived value, dive into our comprehensive guide on wine bottle sizes.

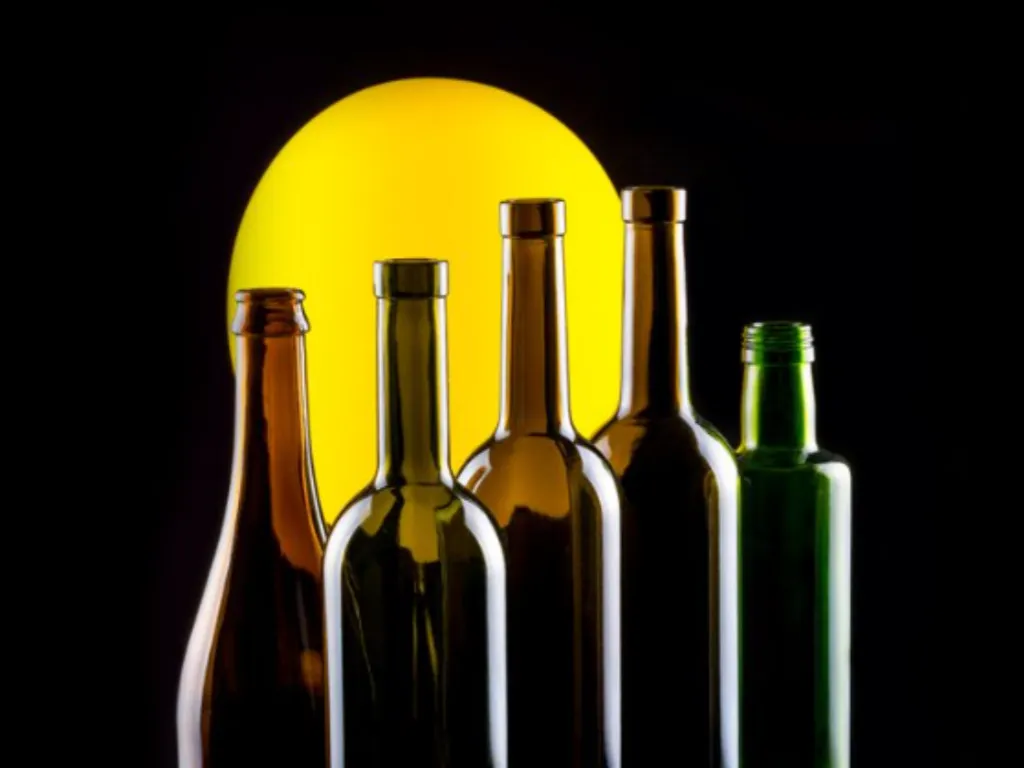

The Spectral Shield: Glass Color and Photo-Oxidation Substrates

A novice designer selects glass color based on a mood board or current aesthetic trends; a master packaging engineer selects glass color as a vital chemical shield protecting millions of dollars of liquid assets. Light is the silent assassin of wine. The interaction between specific light wavelengths and the chemical compounds within the wine dictates the lifespan of your product. Choosing the wrong glass color is an engineering failure, not an artistic one.

• Antique Green (The Gold Standard): The heavy, dark, olive-toned green glass utilized almost universally for premium red wines. Beyond its classic, historical visual appeal, it is a strict functional necessity. Antique Green absorbs over 90% of harmful Ultraviolet (UV) rays between the 320nm and 400nm wavelengths. This critical barrier prevents the rapid photochemical breakdown of complex tannins and anthocyanins, effectively safeguarding the wine’s multi-decade aging potential in the cellar.
• Dead Leaf Green (Feuille Morte): The absolute hallmark of premium white Burgundies, such as highly sought-after Montrachet. It offers moderate to high UV protection while providing a vintage, earthy, and sophisticated aesthetic that clear glass simply cannot match. It subtly communicates an organic, traditional, and minimally interventionist winemaking philosophy.
• Amber / Brown Glass: Frequently utilized for German Rieslings, certain old-world Syrahs, and highly sensitive fortified wines. Amber glass offers the absolute highest degree of UV protection available in the commercial glass industry, blocking nearly 99% of damaging light wavelengths. From a pure preservation standpoint, amber is superior to green, though consumer visual expectations often relegate it to specific regional styles.
• Extra-Flint / Clear Glass: Unrivaled for showcasing the brilliant, seductive, and highly marketable hues of Provence Rosés and crisp Sauvignon Blancs. It is a incredibly powerful marketing tool for wines meant to be consumed young, allowing the liquid itself to act as the primary visual draw.

Graphic Motifs: Typography, Intricate Patterns, and Die-Cut Architecture

Once the physical glass canvas is solidified and the chemical protection of the color is established, the surface graphic elements must be deployed to lock in the target demographic with sniper-like precision. We must move far beyond simple font selection into the realm of tactile, psychological storytelling. The label is the final handshake with the consumer; it must flawlessly articulate the brand’s core value proposition.

• Botanical Engravings & Family Crests: Utilizing heavy, traditional serif typography (such as Garamond, Trajan, or Baskerville) paired with highly intricate, vintage vine patterns, heraldic crests, or detailed château illustrations. This specific aesthetic anchors the brand deeply in history, projecting an aura of generational wealth, established viticulture, and unyielding tradition. It effortlessly justifies reserve-tier pricing, particularly for older demographics who equate visual complexity with winemaking pedigree and high quality.
• Geometric Filigree & Aggressive Minimalism: Employing vast expanses of pure negative space, striking sans-serif typography, and sharp, metallic geometric lines. This strategy drastically reduces the consumer’s cognitive load amidst a chaotic retail shelf. It appeals instantly to modern, high-net-worth millennials and Gen Z buyers who subconsciously equate unpretentious, hyper-clean design with organic purity, low intervention, and contemporary luxury. It boldly states: “Our wine is so exceptional, we do not need to hide behind distracting historical artwork.”
• Custom Die-Cut Contours: The ultimate structural weapon against shelf blindness. By breaking away from the standard, cheap rectangular label mold, brands can utilize jagged, torn-edge paper (simulating authentic handmade artisan craft) or sharply angled, asymmetrical die-cuts that wrap organically around the bottle’s curvature. This creates a highly tactile, disruptive “stop-scroll” moment as the consumer visually scans the physical retail aisle, forcing them to pause, reach out, and physically interact with the uniquely shaped label.

Essential Legal Requirements and Label Anatomy

A breathtaking, award-winning design is nothing but a catastrophic financial liability if it is seized at customs, rejected by federal regulatory bodies, or pulled from shelves due to glaring non-compliance. Strict, unwavering adherence to global alcohol regulations is the very first law of wine packaging. Designers and brand owners must learn to dance gracefully in handcuffs, treating legal parameters not as an afterthought, but as the foundational grid upon which all art is built. A single typographical error regarding alcohol percentage can result in the destruction of entire shipping containers.

Decoding TTB and EU Compliance: Mandatory Technical Regulatory Typography

As per the notoriously stringent guidelines established by the US Alcohol and Tobacco Tax and Trade Bureau (TTB) and the European Union’s latest regulatory directives (including the sweeping Regulation EU 2021/2117 regarding on-label ingredient and nutritional labeling via QR codes), certain textual elements are strictly non-negotiable. Ignoring these parameters, attempting to hide them in unreadable scripts, or failing to meet minimum contrast ratios guarantees a failed COLA (Certificate of Label Approval) and a dead-stop to your supply chain.

Strategic Information Architecture for Premium Glassware

How does a luxury brand balance these draconian, visually unappealing legal compliance requirements with high-end, minimalist aesthetics? The industry answer is mastering the “Front Lure, Back Facts” architectural protocol. By strictly dividing the real estate of the bottle, we can maintain absolute visual purity where it matters most, while simultaneously satisfying the most relentless government auditors.

Manufacturing Feasibility, Material Engineering, and Glass Tolerances

The deepest, most expensive chasm in packaging design lies exactly between the graphic designer’s flawless, pixel-perfect Adobe Illustrator file and the chaotic, high-speed, 1200°C reality of an automated bottling line. If you design in a vacuum—without profoundly respecting the physics of paper tension, the chemical bonds of adhesives, and the stark laws of glass manufacturing tolerances—your design will catastrophically fail during mass production, resulting in tens of thousands of dollars in wasted materials and severe brand damage.

Structural Integrity of Labels: The Ice Bucket Test and Adhesive Chemistry

Picture a high-end, Michelin-starred restaurant dining room: An expensive, highly rated aged white Burgundy is proudly pulled from a tableside ice bucket by the sommelier to serve to a VIP client. Suddenly, due to the extreme temperature differential and condensation, the paper label instantly dissolves, slides completely off the wet glass, and falls as a soggy, unrecognizable clump onto the pristine white tablecloth. In that single, horrifying moment, the brand’s carefully cultivated luxury image is instantaneously destroyed, replaced by the perception of cheap, faulty manufacturing.

To permanently prevent this nightmare, utilizing standard uncoated paper is entirely unacceptable for white, rosé, and sparkling wines. Your technical procurement specifications must explicitly demand Wet-Strength Premium Paper. These highly specialized papers are engineered at the mill level with advanced synthetic resins coating the internal wood fibers. This chemical treatment prevents the fibers from absorbing water, swelling, and tearing when fully saturated by condensation. Furthermore, this heavy-duty paper must be paired with advanced, hydrolytic-resistant adhesives. The absolute industry benchmark that every label must pass is the grueling “Ice Bucket Test”: the fully labeled, room-temperature bottle must survive being fully submerged in a 0°C ice-water bath for a minimum of 4 to 6 hours with zero bubbling, edge peeling, or sliding down the glass.

Tactile Post-Press Finishes and Design for Manufacturing (DFM)

Premiumization in the wine sector relies heavily on tactile post-press finishes to convey luxury, but paper substrates have brutal, unforgiving physical limits. Inexperienced designers frequently attempt to stack multiple luxury finishes on top of each other—such as laying deep, multi-level embossing directly over a massive surface area of heavy hot foil stamping, while simultaneously requesting a thick high-build UV varnish.

This fundamental ignorance of material science leads to a disastrous phenomenon known in the printing industry as “Paper Tension Collapse.” The immense heat (often exceeding 130°C) and massive mechanical pressure required to stamp the metallic foil, combined with the extreme stretching required to force the paper into a deep embossing die, completely fractures the internal cellulose fibers of the paper stock. The immediate result? The labels lose their structural integrity and severely curl on the backing web. When these warped labels hit a high-speed automated applicator machine running at 200 bottles per minute, the pneumatic suction pads fail to grip the curled edges. This causes massive labeling jams, misaligned labels, ruined bottles, and disastrous, highly expensive production downtime on the bottling floor.

Navigating Custom Molds and The Glass Tolerance Trap

Designers operate in a digital world of perfect, infinite millimeters; molten glass, however, flows in unpredictable, organic fractions. During the high-heat blow molding process, where a “gob” of molten glass is dropped into a parison and blown into its final shape, the glass naturally distributes with slight variations based on temperature and machine speed. Therefore, glass blow molding inherently carries a radial tolerance of ±1.5mm to ±2.0mm. If a designer creates a seamless, 360-degree full-wrap label expecting the two ends to meet perfectly and flush around the circumference of the bottle, the constantly varying diameter from bottle to bottle will guarantee catastrophic, unfixable wrinkles and severe misalignment on the factory line. A 5mm to 8mm gap must always, without exception, be engineered into the wrap design to absorb these physical glass tolerances.

When investing tens of thousands of dollars into a proprietary custom mold to elevate your brand, the most devastating hidden risk is partnering with a traditional foundry that produces inconsistent glass wall thicknesses and highly prominent mold seams. These crude manufacturing artifacts not only cause premium wrap-around labels to bubble and peel due to the uneven surface, but they can also lead to catastrophic stress fractures on the bottling line when the glass is subjected to pressure or capping force. To protect your massive capital expenditure and brand prestige, modern supply chains require advanced engineering interventions. This is where partnering with an elite B2B manufacturer like Nuvole Glass becomes your ultimate risk-mitigation strategy. By completely replacing traditional cast iron with micro-precision CNC-machined steel molds, Nuvole Glass entirely eradicates disruptive seams to provide a flawless 360-degree labeling canvas. Furthermore, their integration of Automated Optical Inspection (AOI) for Extra-Flint glass ensures absolute purity by intercepting micro-bubbles, while their 1:1 3D rapid prototyping allows you to physically validate label adhesion and shelf ergonomics long before the final steel is ever cut.

Supply Chain Cost Calculation and ROI Modeling

True luxury packaging design is not merely art; it is a rigorous, unforgiving exercise in supply chain mathematics. Understanding exactly how each visual and material upgrade impacts your unit economics (Cost of Goods Sold – COGS) is the only way to engineer scalable premiumization without completely eroding your hard-earned profit margins. You must calculate the exact tipping point where the cost of a beautiful finish is exponentially returned by a higher retail asking price.

Conclusion and Next Steps in Your Packaging Journey

Exceptional wine bottle design is the meticulous, unforgiving intersection of artistic intuition and rigorous supply chain engineering. It requires a profound, technical respect for the physics of glass, the chemistry of adhesives, and the strict, unyielding boundaries of international law. Before sketching the very first concept or selecting a font, brand directors and designers must anchor their project in physical reality: define your rigid budget, deeply understand your automated filling line constraints, and acknowledge the laws of glass manufacturing tolerances. Only by mastering the unseen engineering can the visible aesthetics truly thrive and generate lasting profitability.
